IE2600-25-SG
Request More Info
About the IE2600-25-SG
Product Overview
2-1/2" Groove x Groove Factory Set Pressure Reducing Inline ValveProduct Details
Wilson & Cousins’ IE2600-25-SG Series:
- Pressure reducing inline (straight) valve
- UL/ULC Listed
- Cast brass construction
- Maximum inlet pressure up to 400 psi (2758 kPa)
- Maximum inlet flow rate up to 500 GPM
- Eight (8) different bonnet sizes to choose from-each one offering different reduction properties
Download the Sizing Charts, Settings Calculator and Selection Guide for the IE-2600 family of valves on our Support page.

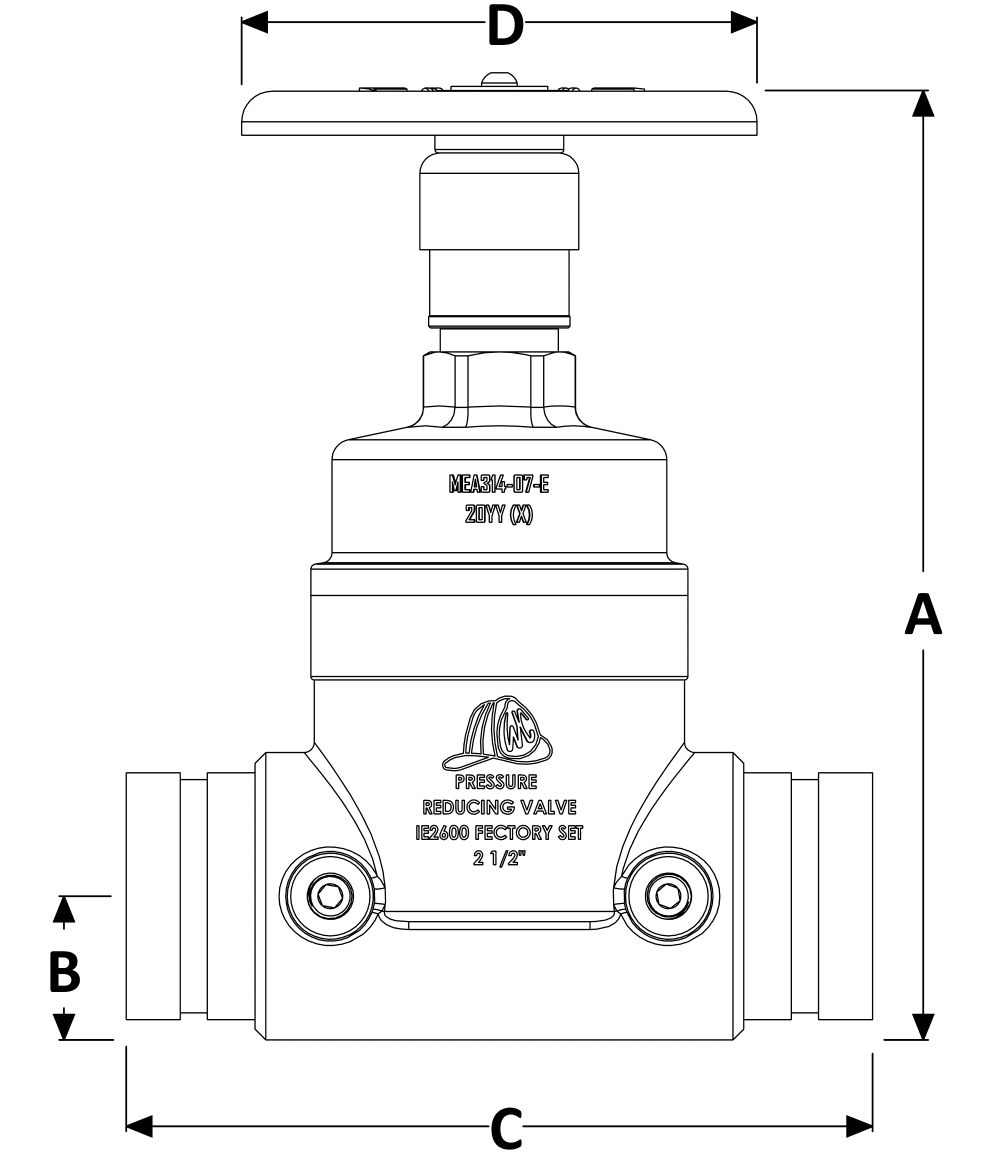

Product Dimensions
- A = 11.75" or 11" (Open)
- A = 11.13"or10.4"(Close)
- B = 1.69" or 1.69"
- C = 7.5" or 8.69"
- D = 6.25" or 6"
Engineering Specifications
Wilson & Cousins’ IE2600-25-SG Series:
- Pressure reducing inline (straight) valve
- UL/ULC Listed
- Cast brass construction
- Maximum inlet pressure up to 400 psi (2758 kPa)
- Maximum inlet flow rate up to 500 GPM
- Eight (8) different bonnet sizes to choose from-each one offering different reduction properties
Other Information
There are no related documents currently available for this product.
Weights and Quantities
- Case Weight: 15 lbs.
- Case Quantity: 1
