HF325M CP
Request More Info
About the HF325M CP
Product Overview
Male Polished Chrome Check Snoot (Clapper Style) - 3" M NPT x 2-1/2" Hose SwivelProduct Details
Wilson & Cousins, HF325M CP, 3″ (76mm) M NPT x 2.5″ (65mm) Female swivel hose thread, polished chrome Check Snoot. The 2.5″ (65mm) inlet can supply up to 250 GPM. UL /ULC Listed and FM Approved.

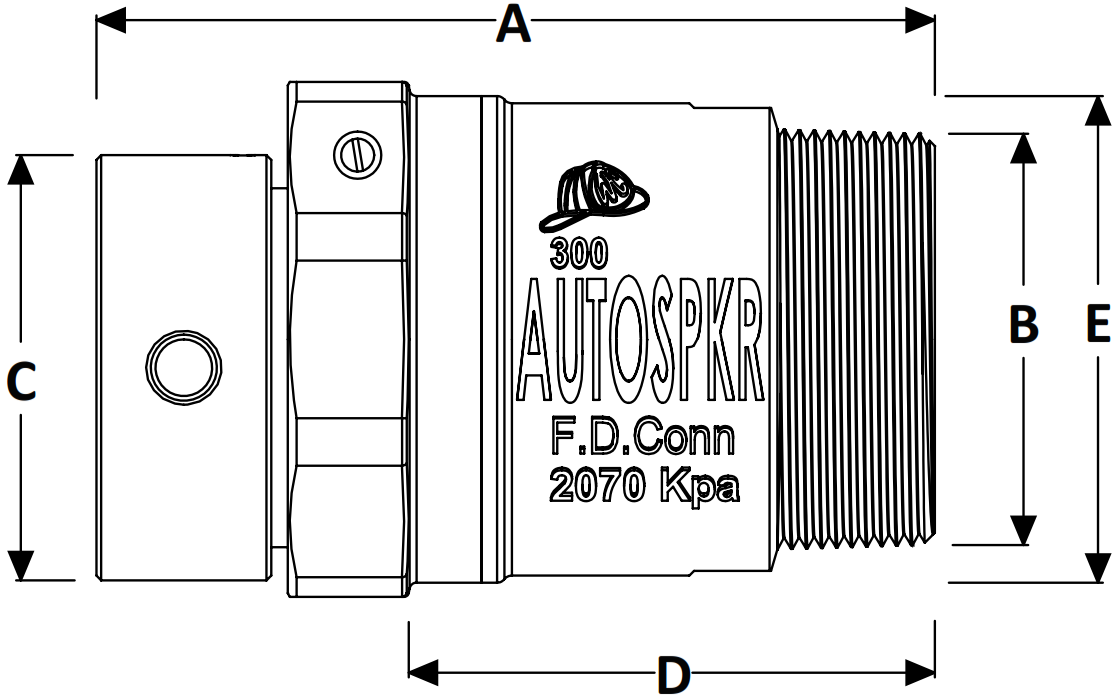

Product Dimensions
- A = 7" (178mm)
- B = 3" M NPT
- C = 2-1/2" hose thread
- D = 4-3/8" (111mm)
- E = 4" (103mm)
Engineering Specifications
Wilson & Cousins, HF325M CP, 3″ (76mm) M NPT x 2.5″ (65mm) F swivel hose thread, polished chrome Check Snoot. The 2.5″ (65mm) inlet can supply up to 250 GPM. UL /ULC Listed and FM Approved.
Other Information
There are no related documents currently available for this product.
Weights and Quantities
- Case Weight:
- Case Quantity: 6
